SIERRA | FLOW FORMED | SIMULATED (17-20”)

SIERRA | FLOW FORMED | SIMULATED (17-20”)


  • Extreme Off-road Use
  • Overlanding
  • Heavy-Duty Load Rating
  • Weekend Wheeler
  • Towing (Simulated)
  • Made to Order (1-2 Week ETA)
Regular price$ 512.50
/
Pickup available at Battle Born Wheels HQ

Usually ready in 2-4 days

SIERRA | FLOW FORMED | SIMULATED (17-20”)
17x9 | 5x4.5 | -13/4.50" | Jeep TJ/YJ/XJ / STANDARD MACHINED / SIMULATED RING | DRAIN HOLES (DOT)
Battle Born Wheels HQ

Pickup available, usually ready in 2-4 days

3267 Research Way
211
Carson City NV 89706
United States

+17754004048

Supply Drop!

These wheels are made to order. We carefully craft our wheels into what you see here and we take pride in delivering the best possible product to you. Please allow 1-2 week lead-times on our Sierra Flow Formed wheels.

The heat treated Flow Formed aluminum wheel blanks will be carefully picked from our pallet racking. Next our machinist, who is a true craftsman, will load your wheels into our state of the art CNC vertical mill and ensure the sophisticated android cuts your Battle Born Wheels to your specified fitment. They will then be placed on a satin pillow where our entire team will inspect and polish your wheels to make sure they are in the best possible condition before shipping. Our packing specialist will light a candle and put your wheels into the finest gold-lined box that money can buy.

We all will have beer afterwards as the whole shop marches down the street to the FedEx office where we ship your Battle Born Wheels.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

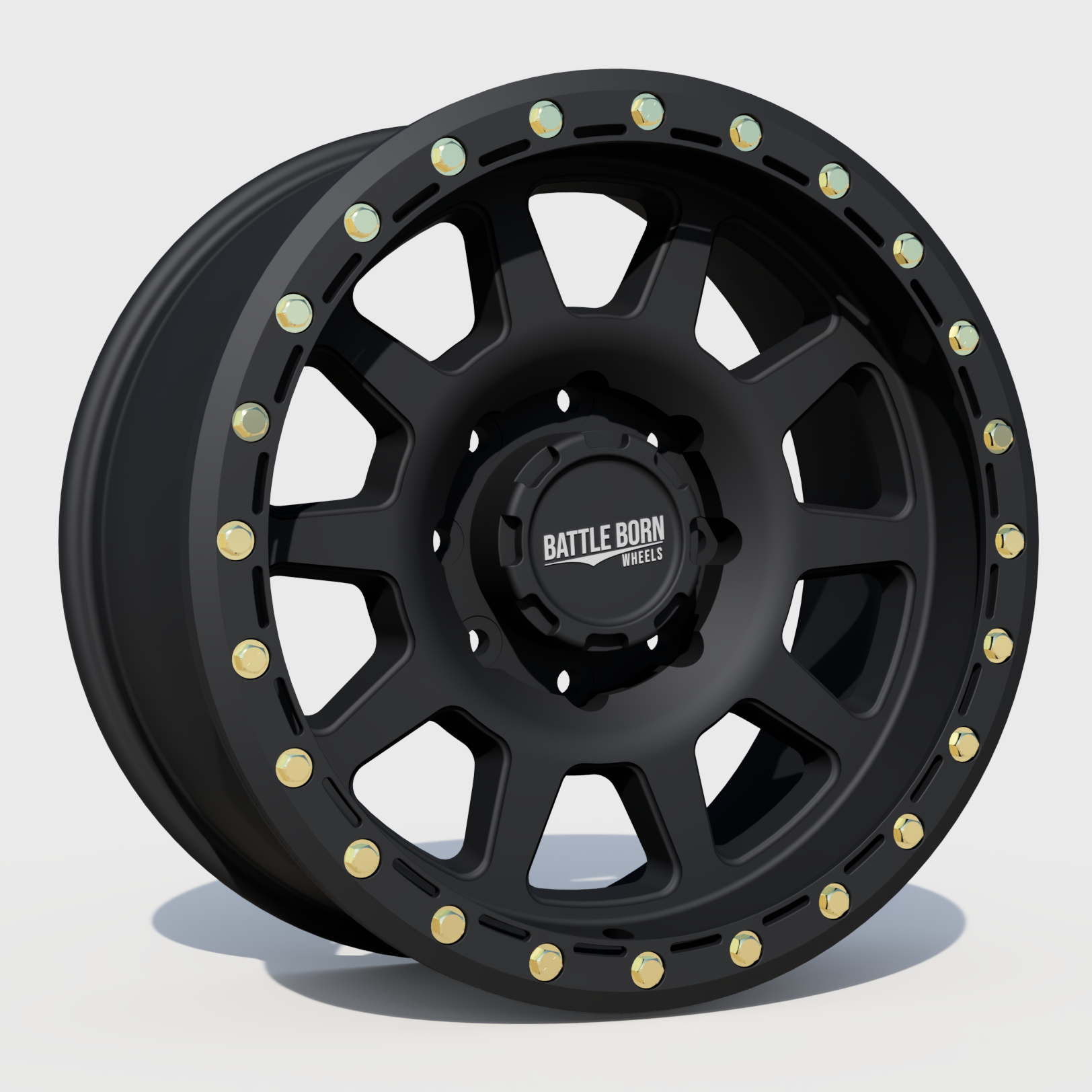

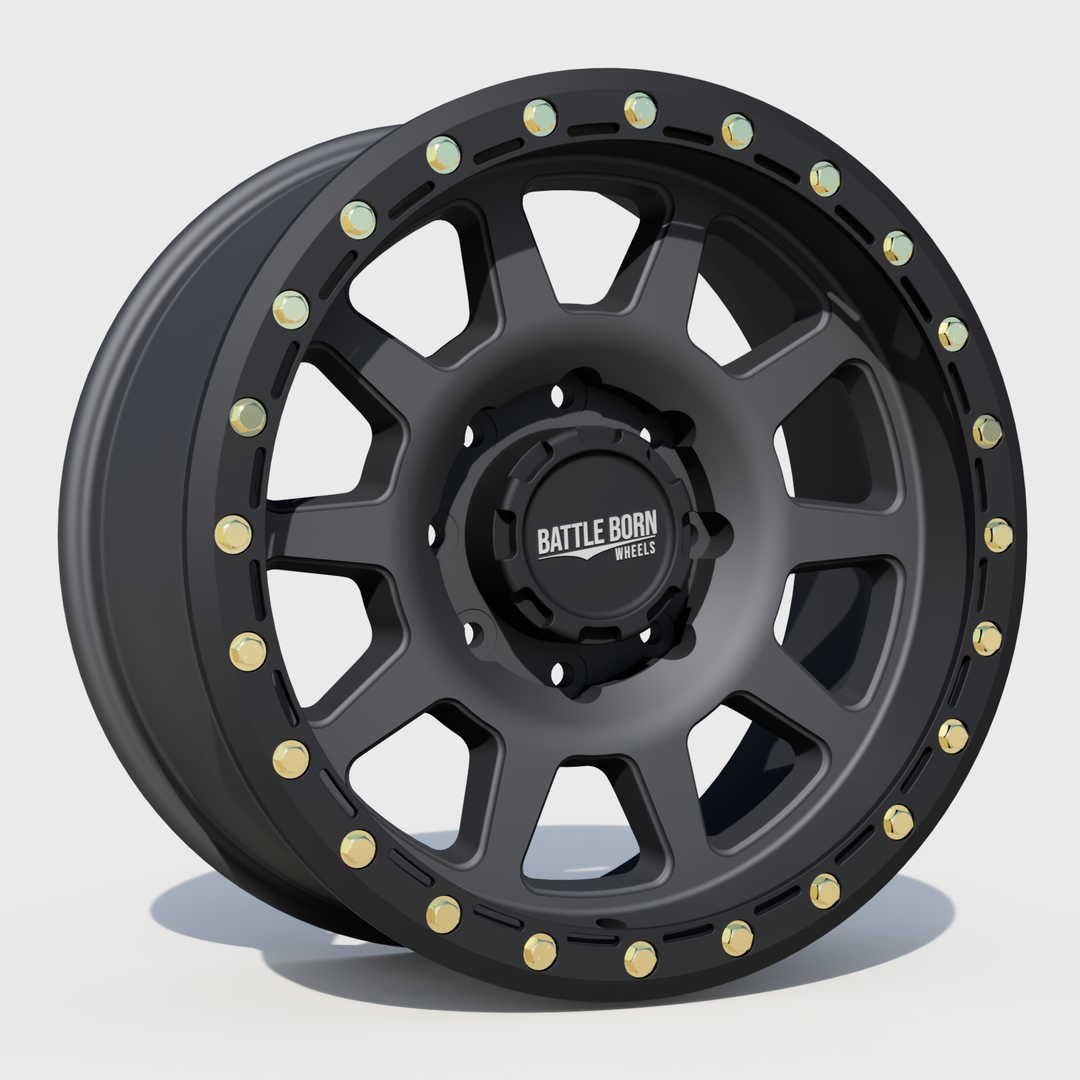

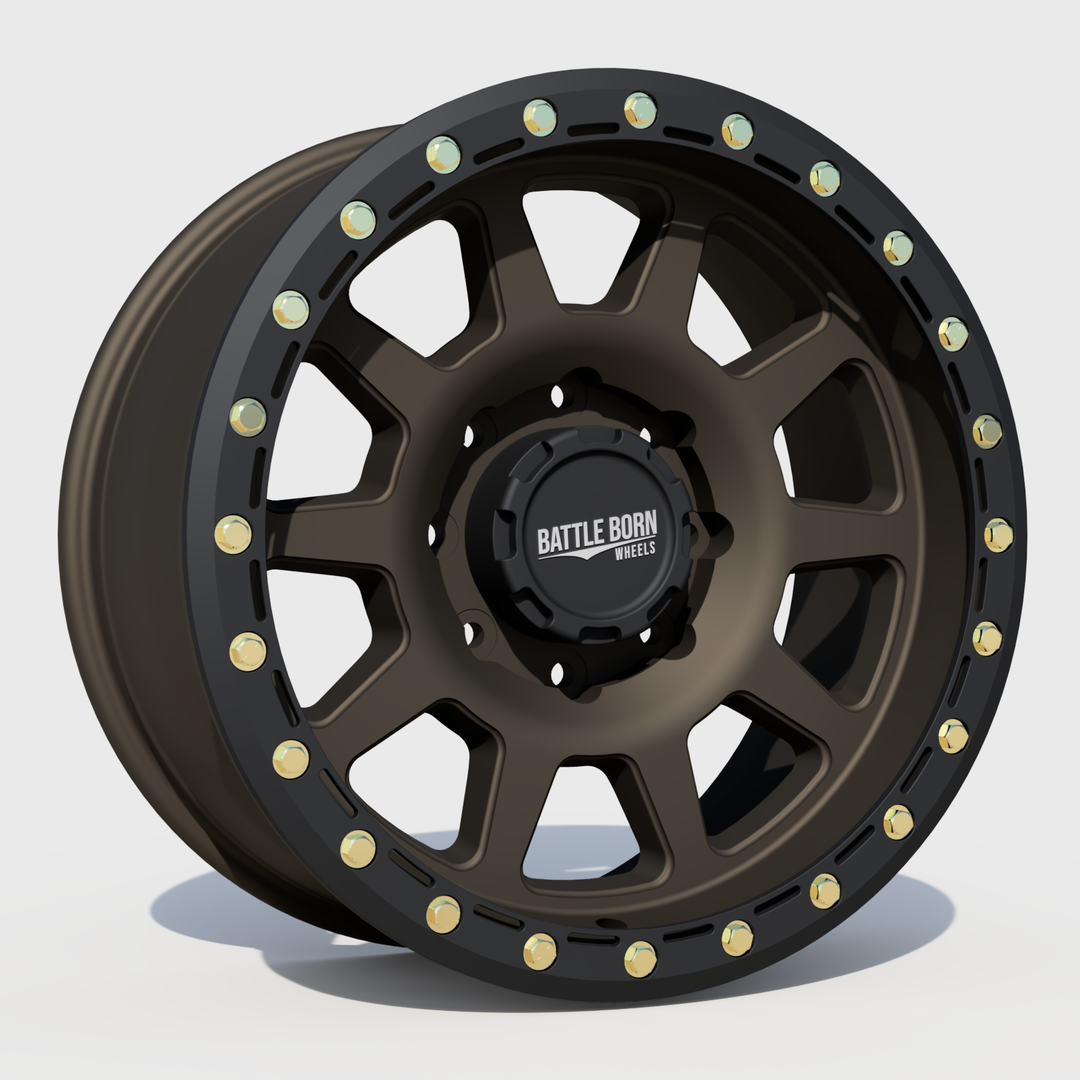

SIERRA
FLOW FORMED

JOHNSON VALLEY, CA


The Sierra is offered in a 17x9 or a 20x9! The wheel is made by Flow Formed Aluminum Construction. After it has been casted, Flow Forming Technology applies pressure to the inner barrel of the wheel, while spinning. This process stretches and compresses the aluminum, which increases tensile strength by optimizing grain structure of the aluminum.

The Sierra is available in a wide variety of bolt patterns and two offset options. Choose 4.50" backspace (-13mm Offset) to push the wheel further out and 5" backspace (0mm Offset) to bring the wheel closer into the steering knuckle. By having this higher offset wheel, your steering scrub radius will result in better performance and longevity of components. We also enlarged the lug nut bore for better lug nut options and clearance. If unsure, please email or call with questions regarding backspace and bolt patterns.

The Sierra offers you the option to run a true off-road beadlock clamping ring for race/extreme vehicle use or a "simulated" accent ring for your daily driver. Both of these rings are a Forged 6061-T6 Construction for the ultimate combination of strength and lightweight. The weep holes on the inner section of the ring allow water and debris to escape after those water crossings and car washes. The ring hardware is made up of (24) zinc yellow-chromate plated hex head screws, in Grade 8 steel, 3/8"-16 thread size, and 1-1/4" long. We’ve taken the extra time to drill and tap (48) redundant holes in the lip of the wheel for long term worry free use. The beadlock rings are counterbored to provide the best protection for your bolts.

This wheel is offered in a standard Machined Raw Finish. This allows you to run the wheel as is, polished, or custom coating.

Please allow 1-2 week lead-time for us to CNC mill bolt patterns and/or apply coatings and finishes.

Reach out to us at Battle Born Wheels with any questions!

775-400-4048 / Sales@Battlebornwheels.com

  • Available in 17x9 or 20x9
  • Flow Formed Aluminum Casting
  • Forged 6061-T6 Heat Treated Rings
  • Dual Mounting Design - Available with Off-Road Use Beadlock Ring or Simulated Accent Ring
  • Slotted Weep Holes
  • Wide Selection of Bolt Patterns (Email/Call for Custom Fitments)
  • Extra Large Lug Nut Socket Clearance
  • 24 Grade 8 Steel 3/8"-16 Thread, 1-1/4" Length Hardware
  • 48 Redundant Double Drilled and Tapped Beadlock Screw Holes
  • Counterbored Beadlock Screw Holes in Ring
  • Knurling Applied on Wheel Lip and Beadlock Ring Mating Surfaces
  • 37lbs
  • Many more bolt patterns available, if yours is not listed please email for custom options
  • Designed and CNC Machined in Carson City Nevada, Casting Imported.
Part# Model Finish Size Bolt Pattern Backspace Offset Bore Weight Load Function TPMS Compatibility MSRP (USD)
S179545450FF-SIM Sierra Machined 17x9 5x114.3 4.50” -13mm 71.5mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179545500FF-SIM Sierra Machined 17x9 5x114.3 5.00” 0mm 71.5mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S17955450FF-SIM Sierra Machined 17x9 5x127 4.50” -13mm 71.5mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S17955500FF-SIM Sierra Machined 17x9 5x127 5.00” 0mm 71.5mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179555450FF-SIM Sierra Machined 17x9 5x139.7 4.50” -13mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179555500FF-SIM Sierra Machined 17x9 5x139.7 5.00” 0mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S1796135450FF-SIM Sierra Machined 17x9 6x135 4.50” -13mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S1796135500FF-SIM Sierra Machined 17x9 6x135 5.00” 0mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179655450FF-SIM Sierra Machined 17x9 6x139.7 4.50” -13mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179655500FF-SIM Sierra Machined 17x9 6x139.7 5.00” 0mm 108mm 37.6 lbs 2500 lbs Simulated Yes $512.50
S179865450FF-SIM Sierra Machined 17x9 8x165.1 4.50” -13mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S179865500FF-SIM Sierra Machined 17x9 8x165.1 5.00” 0mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S1798170450FF-SIM Sierra Machined 17x9 8x170 4.50” -13mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S1798170500FF-SIM Sierra Machined 17x9 8x170 5.00” 0mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S1798180450FF-SIM Sierra Machined 17x9 8x180 4.50” -13mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S1798180500FF-SIM Sierra Machined 17x9 8x180 5.00” 0mm 130.81mm 35.7 lbs 4000 lbs Simulated Yes $512.50
S20955450FF-SIM Sierra Machined 20x9 5x127 4.50” -13mm 71.5mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S20955500FF-SIM Sierra Machined 20x9 5x127 5.00” 0mm 71.5mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S2096135450FF-SIM Sierra Machined 20x9 6x135 4.50” -13mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S2096135500FF-SIM Sierra Machined 20x9 6x135 5.00” 0mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S2096135550FF-SIM Sierra Machined 20x9 6x135 5.50” +13mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S209655450FF-SIM Sierra Machined 20x9 6x139.7 4.50” -13mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S209655500FF-SIM Sierra Machined 20x9 6x139.7 5.00” 0mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S209655550FF-SIM Sierra Machined 20x9 6x139.7 5.50” +13mm 108mm 46.0 lbs 2500 lbs Simulated Yes $681.25
S209865450FF-SIM Sierra Machined 20x9 8x165.1 4.50” -13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S209865500FF-SIM Sierra Machined 20x9 8x165.1 5.00” 0mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S209865550FF-SIM Sierra Machined 20x9 8x165.1 5.50” +13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098170450FF-SIM Sierra Machined 20x9 8x170 4.50” -13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098170500FF-SIM Sierra Machined 20x9 8x170 5.00” 0mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098170550FF-SIM Sierra Machined 20x9 8x170 5.50” +13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098180450FF-SIM Sierra Machined 20x9 8x180 4.50” -13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098180500FF-SIM Sierra Machined 20x9 8x180 5.00” 0mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25
S2098180550FF-SIM Sierra Machined 20x9 8x180 5.50” +13mm 130.81mm 46.0 lbs 4000 lbs Simulated Yes $681.25

BEADLOCK RING OPTIONS

NOTCHED

Now offering the "Notched" option. Extra machine work to pocket and Notch your rings to allow FAST draining. Avoid any water collecting on the lip of the wheel. Arguably the most beautiful ring we offer.

SLOTTED

The "Slotted" is our signature design. The weep holes allow water to escape or collecting on the lip of the wheel. Our most popular option to date.

SOLID

No frills here. Our "Solid" option is designed for the vehicles using the beadlock ring as added traction on the rocks. These will take the most hardcore offroad abuse.

NEW RING OPTIONS

NOTCHED DRAINS

Notched ring is flush with the barrel of the wheel to let the crud out.

QUALITY GUARANTEED

All Battle Born Wheels include a replacement warranty covering any structural failure for a period of one year from original date of purchase. Including off-road use. Please see details here

Endless Endeavor

Real-World Evaluation

Assessing the functionality and performance of something in actual operational conditions. The Sierra Flow Form wheels are built for the toughest environments.

True Beadlock vs. Simulated (DOT)

FULLY PROTECTED

COUNTERBORED

Rock-rash the beadlock rings, not your bolt heads...

why choose?

Form or Function

Something can be beautiful or it can be practical, rarely both. Until now... Balancing operational effectiveness with a polished appearance is what we do.

Precision and Efficiency

Reliable Performance

Consistently delivering results that can be depended upon.

Increase the friction

KNURLED BEADLOCK

Standard feature on our entire aluminum line.

Mission Success

Sierra Flow Formed Beadlock

Superior Performance: Demonstrating exceptional capabilities and effectiveness.

BBW

Too Thick?

Talking about your tires... Some have extremely thick beads causing "coning" of the ring and undesirable results. Our aluminum Anti-Coning Spacer kits are affordable and good in stock.
